Specifications
| Product Number | ABHS-01002-MNPT |
| For Use With | Air, Water |
| Shape | Straight |
| Type | Adapter |

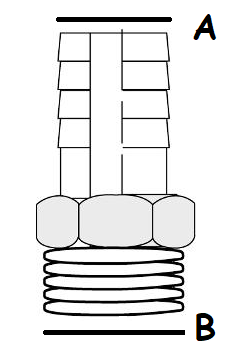

Hose Connection (A) |
|
| Connection Style | Barbed |
| Barbed Connection Type | Clamp On |
| Barb Style | Standard |
| Number of Barbs | Multiple |
| Gender | Male |
| For Hose ID | 1/4" |
Pipe Connection (B) |
|
| Connection Style | Threaded |
| Gender | Male |
| Pipe Size | 1/4 |
| Thread Type | NPT |
| Material | 304 Stainless Steel |
| Maximum Pressure | 150 psi @ 72° F |
| Maximum Vacuum | 27 in. of Hg @ 72° F |
| Vacuum Rating | Standard |
| Temperature Range | -40° to 350° F |
| Length | 1 7/8" |
| For Hose Material | Rubber |
| Attachment Type | Worm-Drive Clamp |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant |
