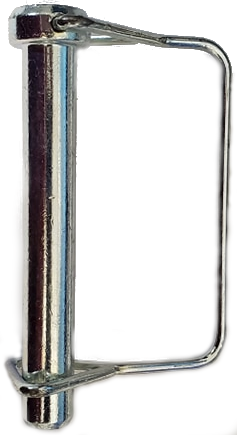

Square Wire-Lock Clevis Pin Zinc 3/8 * 2-1/2"

Square Wire-Lock Clevis Pin Zinc 3/8 * 2-1/2"

Regular price 3.70 $ CAD
Regular price Sale price 3.70 $ CAD
Sale Sold out
Quantity
Download

The wire retainer snaps closed to secure the pin for a one-piece alternative to a clevis and cotter pin combination. Also known as PTO pins. The pins have a diameter of 3/8 and a length of 3-1/2.

Zinc-plated steel pins have good strength and some corrosion resistance.

View full details

Specifications

Product Number ATTS-03025
Pin Type Clevis
End Type Wire Retainer
Head Type Flat
Shaft Type Plain
Retainer Shape Squared
Retainer Closure Loop
System of Measurement Inch
Material 1004-1045 Carbon Steel
Finish Zinc Plated
Diameter 3/8"
Length 3 1/8"
Retainer Clearance 1 5/8"
Min. Hardness Rockwell B55
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
