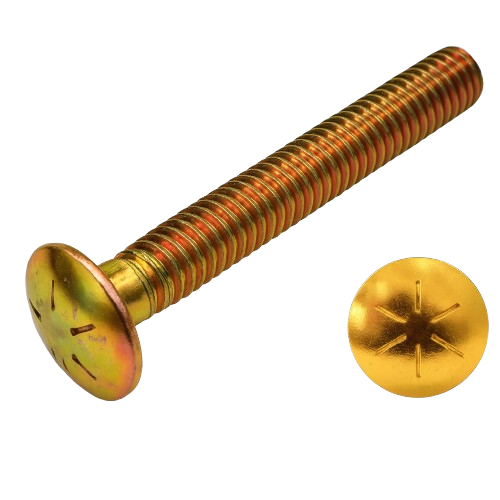

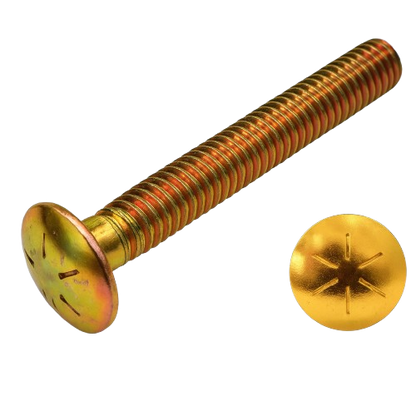

Imperial Carriage Bolt Dome Head Full Thread Yellow Zinc Plated 3/8-16 * 2" Grade 8

Imperial Carriage Bolt Dome Head Full Thread Yellow Zinc Plated 3/8-16 * 2" Grade 8

5.76 $ CAD
5.76 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

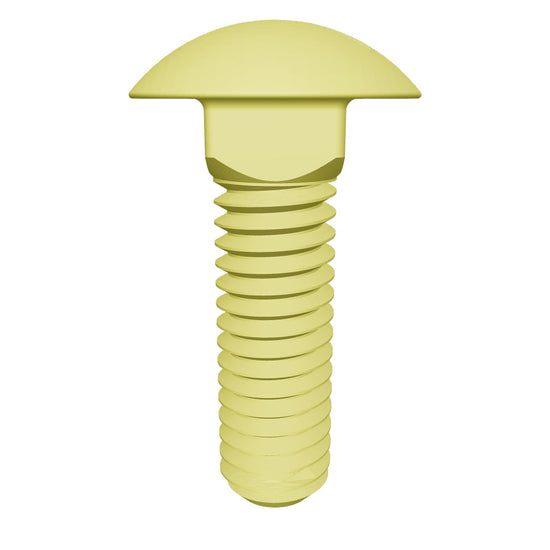

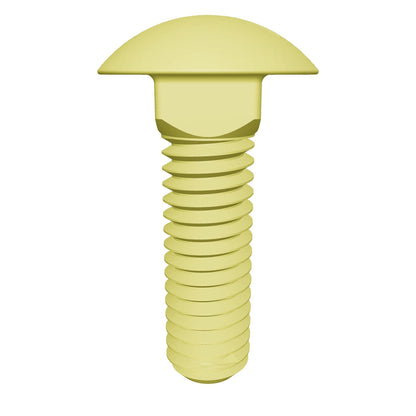

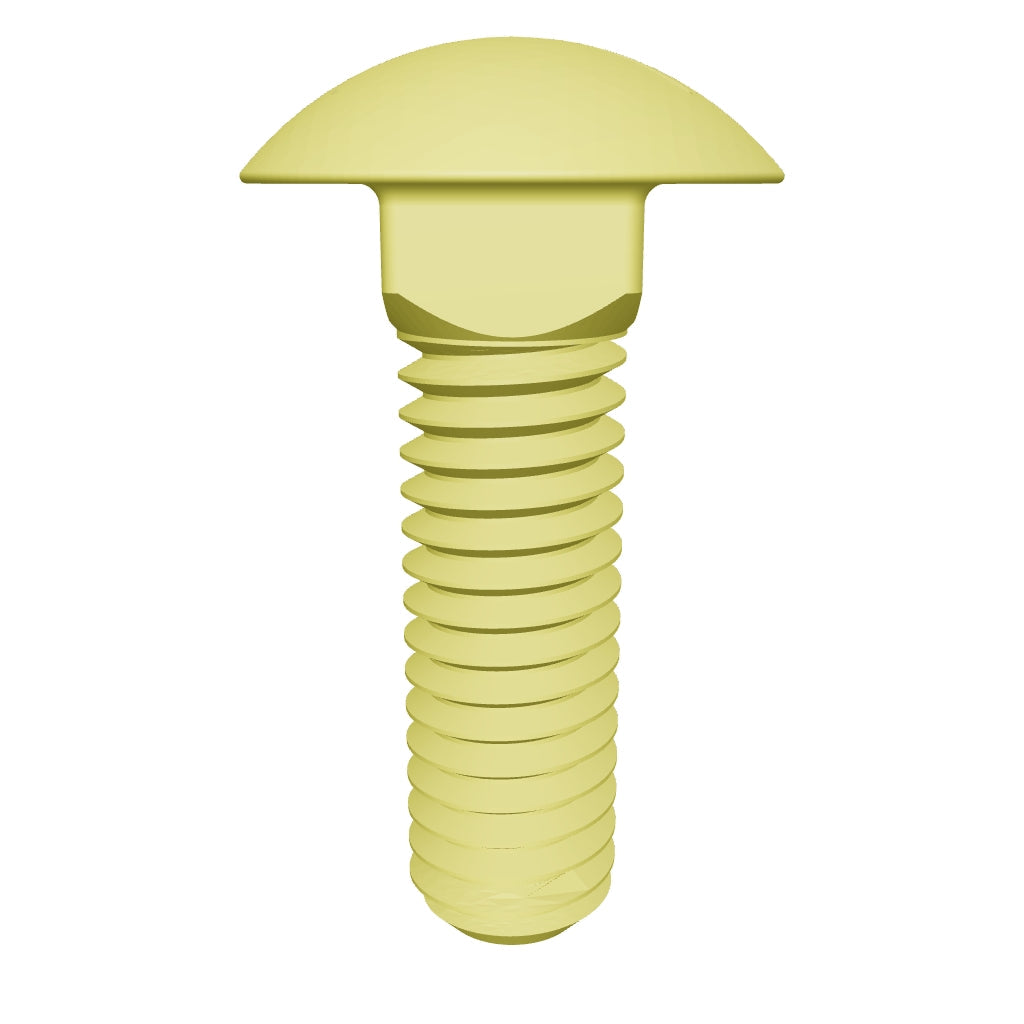

This carriage | dome bolt has a length of 2" with a threading of 3/8-16 [Fully Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BC8-03020
Nominal Diameter 3/8-16
Length 2"
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/8-16
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Carriage | Dome
Profile Standard
Diameter 27/32"
Height 9/32"
Drive Style None

Neck Specifications
Form Square
Width 25/64"
Height 7/32"

Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B18.5 | SAE J429
