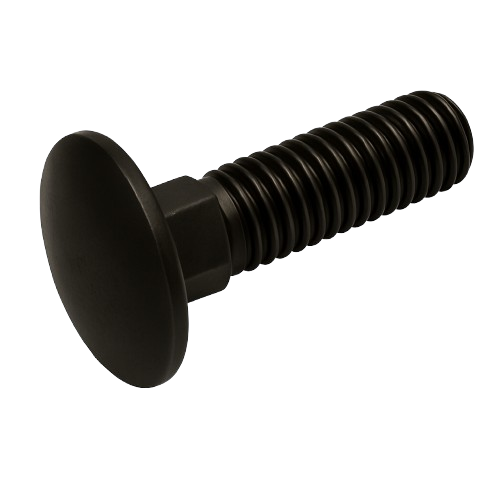

Imperial Carriage Bolt Dome Head Partial Thread Zinc Plated 3/4-10 * 7" Grade 8

Imperial Carriage Bolt Dome Head Partial Thread Zinc Plated 3/4-10 * 7" Grade 8

40.47 $ CAD
40.47 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This carriage | dome bolt has a length of 7" with a threading of 3/4-10 [Partially Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BC8-08070-PTN
Nominal Diameter 3/4-10
Length 7"
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/4-10
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1"
Fit Class 5g6g

Head Specification
Type Carriage | Dome
Profile Standard
Diameter 1-19/32"
Height 13/32"
Drive Style None

Neck Specifications
Form Square
Width 49/64"
Height 13/32"

Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B18.5 | SAE J429
