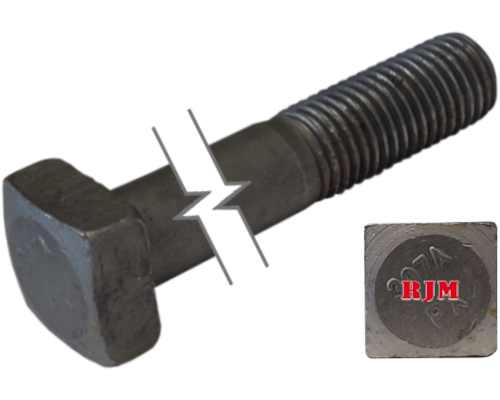

Imperial Square Bolt Partial Thread Plain Alloy Steel 1-8 * 4-1/2" Grade 2

Imperial Square Bolt Partial Thread Plain Alloy Steel 1-8 * 4-1/2" Grade 2

9.83 $ CAD
9.83 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This square bolt has a length of 4-1/2" with a threading of 1-8 [Partially Threaded]. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASTM A307 and comply with dimensional standards.

View full details

Specifications
Product Number BCA-10045
Nominal Diameter 1-8
Length 4-1/2"
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 1-8
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 2-1/4"
Fit Class 5g6g

Head Specification
Type Square
Profile Standard
Width 1-1/2"
Height 21/32"

Strength Specifications
Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ASTM A307
