Imperial Carriage Bolt Dome Head Partial Thread Galvanized 3/4-10 * 7" Grade 2

Imperial Carriage Bolt Dome Head Partial Thread Galvanized 3/4-10 * 7" Grade 2

8.68 $ CAD
8.68 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

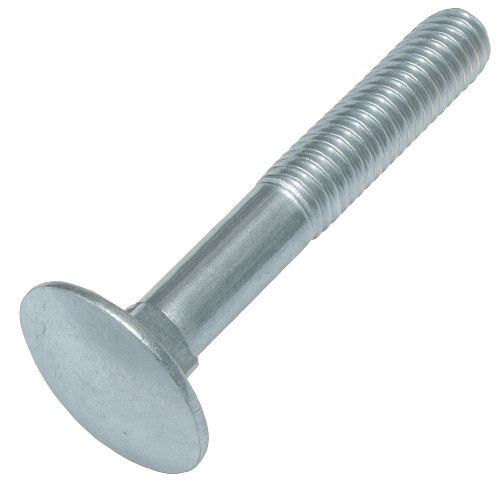

This carriage | dome bolt has a length of 7" with a threading of 3/4-10 [Partially Threaded]. It is galvanized and thus provide high resistance to corrosion in dry environments as well as medium corrosion resistance in wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BCG-08070-PT
Nominal Diameter 3/4-10
Length 7"
Material and/or Plating Galvanized
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/4-10
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1"
Fit Class 5g6g

Head Specification
Type Carriage | Dome
Profile Standard
Diameter 1-19/32"
Height 13/32"
Drive Style None

Neck Specifications
Form Square
Width 49/64"
Height 13/32"

Strength Specifications
Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ASME B18.5 | SAE J429
