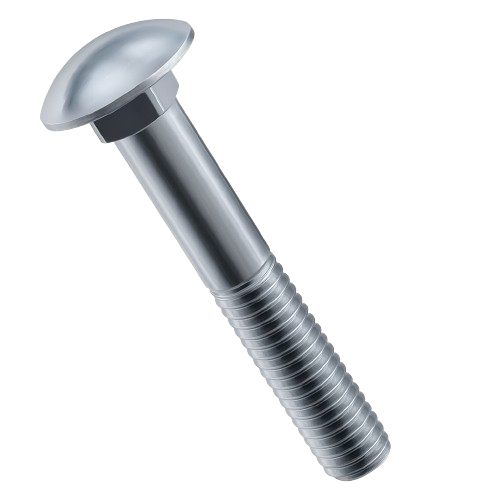

Imperial Carriage Bolt Partial Thread 304 Stainless Steel 5/16-18 * 9"

Imperial Carriage Bolt Partial Thread 304 Stainless Steel 5/16-18 * 9"

15.08 $ CAD
15.08 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This carriage bolt has a length of 9" with a threading of 5/16-18 [Partially Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.5 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BCS-02090-PT
Nominal Diameter 5/16-18
Length 9"
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/16-18
Min. Length 1"
Fit Class 5g6g

Head Specification
Type Carriage
Profile Standard
Diameter 23/32"
Height 11/64"
Drive Style None

Neck Specifications
Form Square
Width 5/16"
Height 3/16"

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B18.5 | SAE J429
