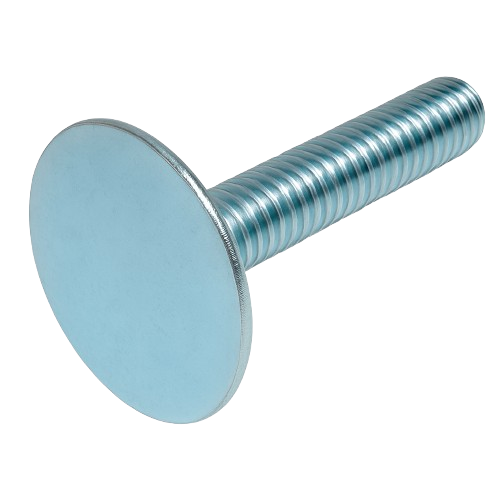

Imperial Elevator Bolt Full Thread Zinc Plated 1/4-20 * 3" Grade 2

Imperial Elevator Bolt Full Thread Zinc Plated 1/4-20 * 3" Grade 2

1.47 $ CAD
1.11 $ CAD 1.47 $ CAD
Sale Sold out
Quantity
Download



This elevator bolt has a length of 3" with a threading of 1/4-20 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 2 increases its strength against the pressure and has a tensile strength and hardness of 60,000 psi | Rockwell B69.8. Furthermore, it features a shear strength of 36,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ANSI/ASME B 18.5 and comply with dimensional standards.

View full details

Specifications
Product Number BE-01030
Nominal Diameter 1/4-20
Length 3"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/4-20
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Elevator
Profile Standard
Diameter 31/32"
Height 3/32"

Neck Specifications
Form Square
Width 17/64"
Height 5/32"

Strength Specifications
Strength Grade/Class Grade 2
Tensile Strength | Hardness 60,000 psi | Rockwell B69.8
Shear Strength 36,000 psi
Classification ANSI/ASME B 18.5
