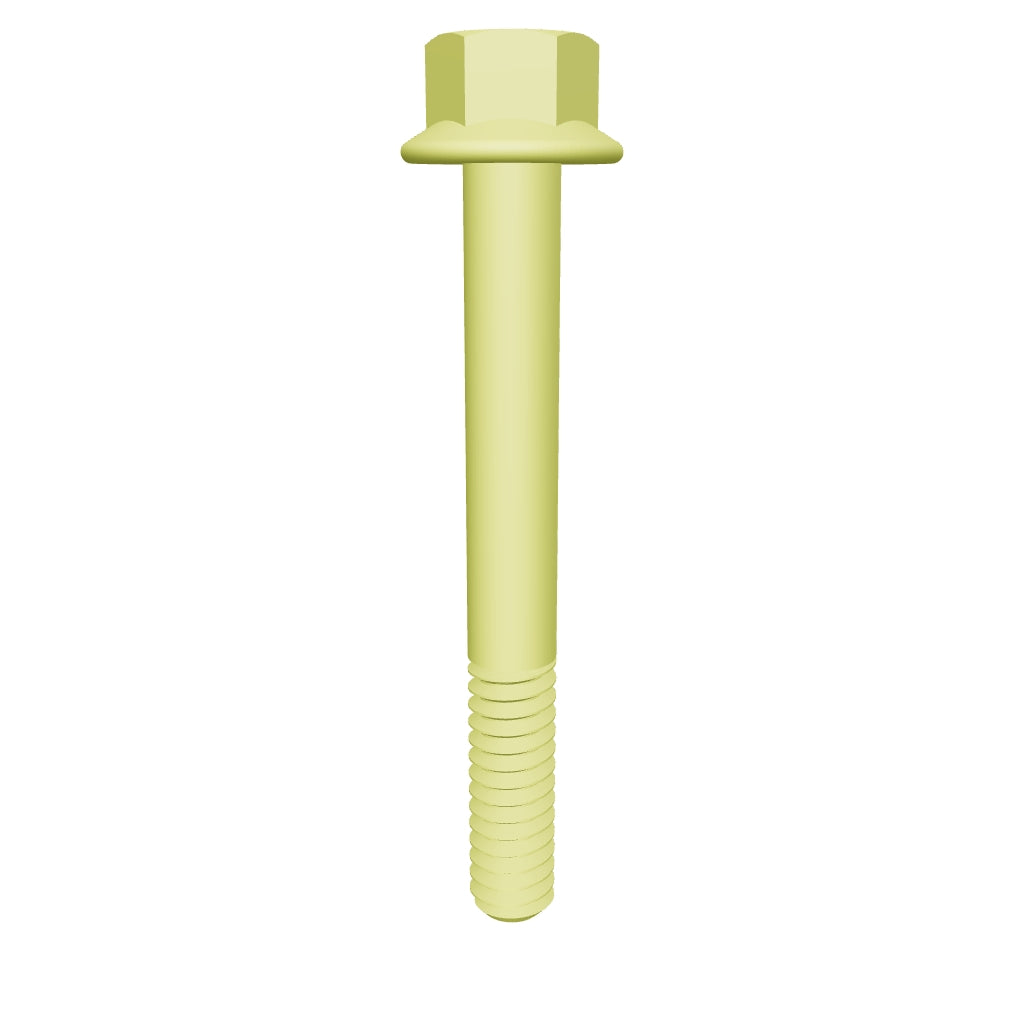

Imperial Flanged Hexagonal Bolt Partial Thread Yellow Zinc Plated 1/2-13 * 2" Grade 5

Imperial Flanged Hexagonal Bolt Partial Thread Yellow Zinc Plated 1/2-13 * 2" Grade 5

Regular price 2.72 $ CAD
Regular price Sale price 2.72 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal bolt has a length of 2" with a threading of 1/2-13 [Partially Threaded]. It is made of yellow zinc plated and thus provide medium resistance to corrosion in dry environments and low resistance in wet environments, but Yellow Zinc provide a higher corrosion resistance than regular zinc.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as IFI 111 | SAE J429 and comply with dimensional standards.

View full details

Specifications

Product Number BE5-05020-Y
Nominal Diameter 1/2-13
Length 2"
Material and/or Plating Yellow Zinc Plated
System of Measurement Imperial

Thread Specifications

Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/2-13
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1-1/4"
Fit Class 5g6g

Head Specification

Type Hexagonal
Profile Flanged
Width 3/4"
Height 11/32"
Flange Diameter 1-5/64
Drive Style External Hex

Strength Specifications

Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification IFI 111 | SAE J429
