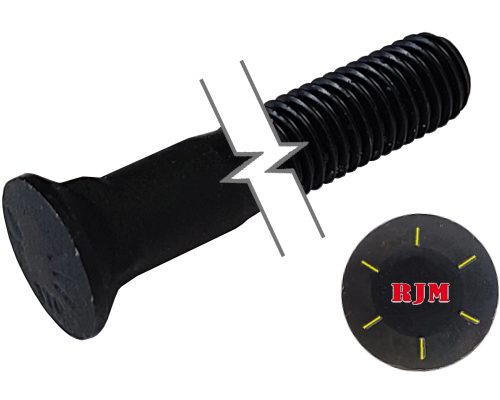

Imperial Plow Bolt Partial Thread Plain Alloy Steel 1-8 * 4-1/2" Grade 8

Imperial Plow Bolt Partial Thread Plain Alloy Steel 1-8 * 4-1/2" Grade 8

16.49 $ CAD
27.97 $ CAD 16.49 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This plow bolt has a length of 4-1/2" with a threading of 1-8 [Partially Threaded]. It is made of plain alloy steel and thus provides low resistance to corrosion in dry and wet environments.

The Grade 8 increases its strength against the pressure and has a tensile strength and hardness of 150,000 psi | Rockwell C33. Furthermore, it features a shear strength of 90,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.9 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BH8-10045
Nominal Diameter 1-8
Length 4-1/2"
Material and/or Plating Plain Alloy Steel
System of Measurement Imperial

Thread Specifications
Threading Partially Threaded
Type UNC | Coarse
Direction Right Hand
Size 1-8
Shank Length 1-3/4
Shank Length 1-3/4
Min. Length 1-6/8"
Fit Class 5g6g

Head Specification
Type Plow
Profile Standard
Diameter 1-9/16"
Height 57/64"
Oval Top Height 7/64
Contersink Angle 82°

Neck Specifications
Form Square
Width 1-1/64"

Strength Specifications
Strength Grade/Class Grade 8
Tensile Strength | Hardness 150,000 psi | Rockwell C33
Shear Strength 90,000 psi
Classification ASME B18.9 | SAE J429
