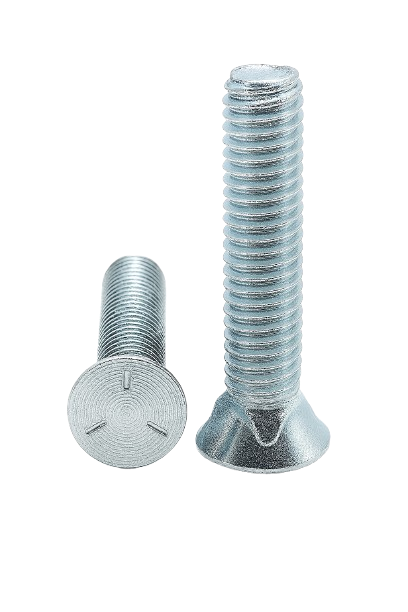

Imperial Plow Bolt Full Thread Zinc Plated 1/2-13 * 3-1/2" Grade 5

Imperial Plow Bolt Full Thread Zinc Plated 1/2-13 * 3-1/2" Grade 5

4.48 $ CAD
4.48 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download



This plow bolt has a length of 3-1/2" with a threading of 1/2-13 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B18.9 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BHT5-05035-Z
Nominal Diameter 1/2-13
Length 3-1/2"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 1/2-13
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Plow
Profile Standard
Diameter 15/16"
Height 27/64"

Neck Specifications
Form Square
Width 33/64"

Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification ASME B18.9 | SAE J429
