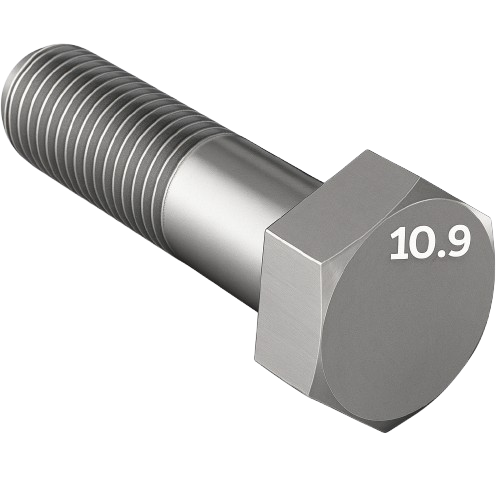

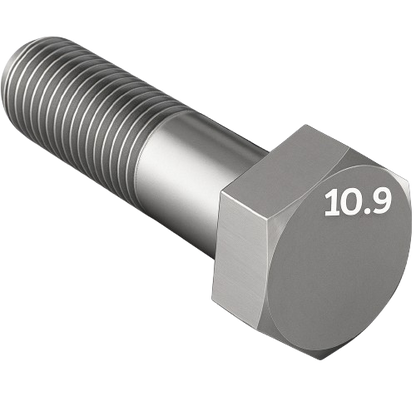

Metric Hexagonal Bolt Yellow Zinc M8 * 1.25 * 45mm Grade 10.9

Metric Hexagonal Bolt Yellow Zinc M8 * 1.25 * 45mm Grade 10.9

1.32 $ CAD
1.32 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Choose these Class 10.9 steel screws for high-stress applications, such as valves, pumps, motors, and automotive suspension systems. They are at least 25% stronger than medium-strength steel screws.Dimensions meet ISO (formerly DIN) specifications.Length is measured from under the head. The bolts have a diameter of M8 * 1.25 and a length of 45.

Zinc-plated steel screws resist corrosion in wet environments. Match the thread spacing of mating components. Coarse threads are the industry standard: choose these screws if you don’t know the pitch.




View full details

Specifications
Product Number BM10-08045-Y
Head Type Hex
Drive Style External Hex
System of Measurement Metric
Thread Direction Right Hand
Thread Size M8
Thread Pitch 1.25 mm
Thread Type Metric
Thread Fit Class 6h
Length 45
Threading Partially Threaded
Min. Thread Length 22 mm
Thread Spacing Coarse

Head
Width 13 mm
Height 5.3 mm
Fastener Strength Grade/Class Class 10.9
Material Steel
Finish Yellow Zinc Plated
Tensile Strength 150,000 psi
Hardness Rockwell C32
Specifications Met ISO 4014, DIN 931
RoHS 3 (2015/863/EU) Not Compliant
