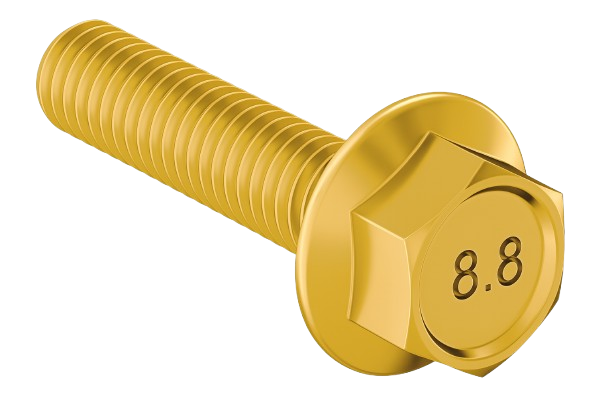

Metric Flanged Hexagonal Bolt Yellow Zinc {M6} * {1.0} * 40mm Grade 8.8

Metric Flanged Hexagonal Bolt Yellow Zinc {M6} * {1.0} * 40mm Grade 8.8

1.51 $ CAD
1.51 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



These Class Zinc-plated steel screws are suitable for fastening most machinery and equipment. The flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. The zinc yellow-chromate plating provides corrosion resistance in wet environments. Material meets ISO 898-1 specifications for quality. Dimensions meet DIN 6921 specifications. Head height includes the flange. Length is measured from under the flange. The bolts have a diameter of M6 * 1.0 and a length of 40MM.

View full details

Specifications
Product Number BME-06040-Y
Head Type Hex
Screw Features Flanged
Drive Style External Hex
System of Measurement Metric
Thread Direction Right Hand
Thread Size M6
Thread Pitch 1 mm
Thread Type Metric
Thread Fit Class 6g
Length 40
Threading Partially Threaded
Min. Thread Length 9 mm
Thread Spacing Coarse

Head, mm
Width 10
Height 6.6
Flange Diameter 14.2 mm
Fastener Strength Grade/Class Class 8.8
Material Steel
Finish Zinc Plated
Tensile Strength 110,000 psi
Hardness Rockwell C22
Specifications Met ISO 898-1, DIN 6921
RoHS RoHS 3 (2015/863/EU) noncompliant
