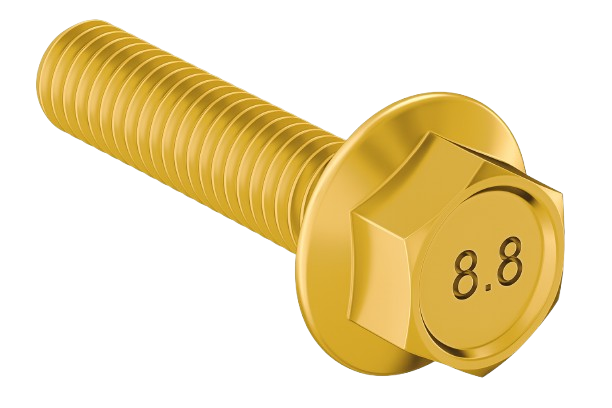

Metric Flanged Hexagonal Bolt Full Thread Yellow Zinc M6 * 1.0 * 16mm Grade 8.8

Metric Flanged Hexagonal Bolt Full Thread Yellow Zinc M6 * 1.0 * 16mm Grade 8.8

0.70 $ CAD
0.70 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



These Class 8.8 steel screws are suitable for fastening most machinery and equipment. The flange distributes pressure where the screw meets the surface, eliminating the need for a separate washer. The Zinc-plated steel provides corrosion resistance in wet environments. Material meets ISO 898-1 specifications for quality. Dimensions meet DIN 6921 specifications. Head height includes the flange. Length is measured from under the flange. The bolts have a thread of M6 * 1.0 and a length of 16mm.

View full details

Specifications
Product Number BMTE-06016-YU
Head Type Hex
Screw Features Flanged
Drive Style External Hex
System of Measurement Metric
Thread Direction Right Hand
Thread Size M6
Thread Pitch 1 mm
Thread Type Metric
Thread Fit Class 6g
Length 16
Threading Fully Threaded
Thread Spacing Coarse

Head, mm
Width 10
Height 6.6
Flange Diameter 14.2 mm
Fastener Strength Grade/Class Class 8.8
Material Steel
Finish Zinc Plated
Tensile Strength 110,000 psi
Hardness Rockwell C22
Specifications Met ISO 898-1, DIN 6921
RoHS RoHS 3 (2015/863/EU) noncompliant
