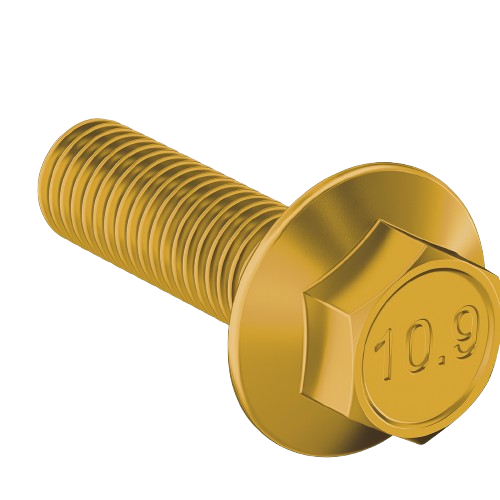

Metric Flanged Hexagonal Bolt Extra Fine & Full Thread Yellow Zinc M12 * 1.25 * 40mm Grade 10.9

Metric Flanged Hexagonal Bolt Extra Fine & Full Thread Yellow Zinc M12 * 1.25 * 40mm Grade 10.9

7.41 $ CAD
7.41 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



Choose these Class 10.9 steel screws for high-stress applications, such as valves, pumps, motors, and automotive suspension systems. They are at least 25% stronger than medium-strength steel screws. Dimensions meet ISO (formerly DIN) specifications. Length is measured from under the head.

Yellow Zinc-plated steel screws resist corrosion in wet environments. Match the thread spacing of mating components. Fine and extra-fine threads are closely spaced to prevent loosening from vibration: the finer the thread, the better the resistance.

View full details

Specifications
Product Number BMTEFF8-12040
Head Type Hex
Screw Features Flanged
Drive Style External Hex
System of Measurement Metric
Thread Direction Right Hand
Thread Size M12
Thread Pitch 1.25 mm
Thread Type Metric
Thread Fit Class 6h
Length 40
Threading Fully Threaded
Thread Spacing Extra Fine

Head
Width 19 mm
Height 7.5 mm
Fastener Strength Grade/Class Class 10.9
Material Steel
Finish Zinc Yellow-Chromate Plated
Tensile Strength 150,000 psi
Hardness Rockwell C32
Specifications Met ISO 8676, DIN 961
RoHS RoHS 3 (2015/863/EU) noncompliant
