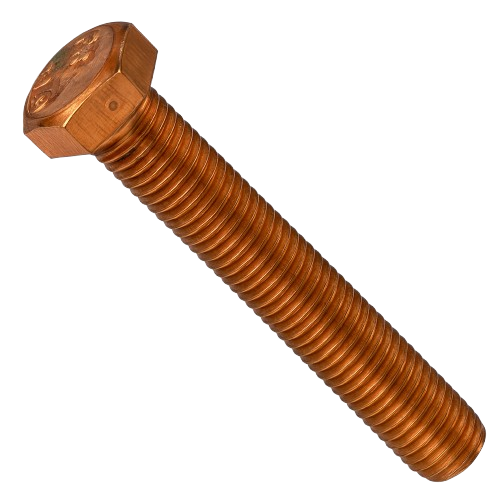

Imperial Hexagonal Bolt Full Thread Silicon Bronze 3/8-16 * 3"

Imperial Hexagonal Bolt Full Thread Silicon Bronze 3/8-16 * 3"

8.51 $ CAD
8.51 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download


This hexagonal bolt has a length of 3" with a threading of 3/8-16 [Fully Threaded]. It is made of silicon bronze, a material that does not corrode.

The Silicon Bronze increases its strength against the pressure and has a tensile strength and hardness of 70,000 psi | Rockwell B70. Furthermore, it features a shear strength of 42,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BSBT-03030
Nominal Diameter 3/8-16
Length 3"
Material and/or Plating Silicon Bronze
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 3/8-16
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 9/16"
Height 1/4"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 70,000 psi | Rockwell B70
Shear Strength 42,000 psi
Classification ASME B19.2.1 | SAE J429
