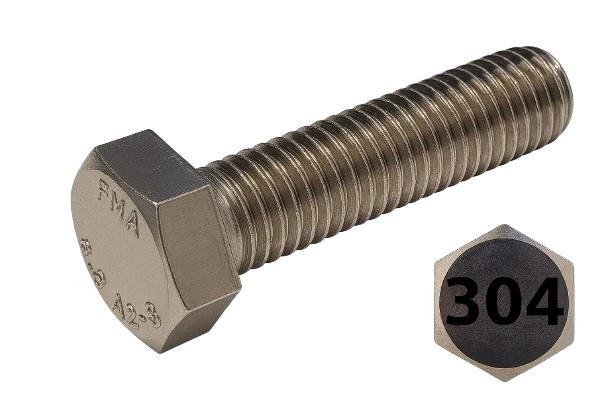

Imperial Hexagonal Bolt Full Thread 304 Stainless Steel 5/16-18 * 2"

Imperial Hexagonal Bolt Full Thread 304 Stainless Steel 5/16-18 * 2"

1.55 $ CAD
1.55 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal bolt has a length of 2" with a threading of 5/16-18 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BST-02020
Nominal Diameter 5/16-18
Length 2"
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/16-18
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 1/2"
Height 7/32"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429
