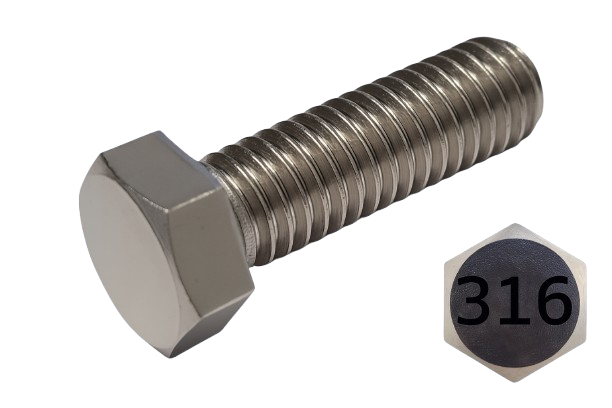

Imperial Hexagonal Bolt Full Thread 316 Stainless Steel 1-1/8-7 * 3"

Imperial Hexagonal Bolt Full Thread 316 Stainless Steel 1-1/8-7 * 3"

28.35 $ CAD
28.35 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal bolt has a length of 3" with a threading of 1-1/8-7 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 316 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BST3-11030
Nominal Diameter 1-1/8-7
Length 3"
Material and/or Plating 316 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 1-1/8-7
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 1-11/16"
Height 11/16"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429
