Imperial Hexagonal Bolt Fine And Full Thread 304 Stainless Steel 1/4-28 * 5/8"

Imperial Hexagonal Bolt Fine And Full Thread 304 Stainless Steel 1/4-28 * 5/8"

0.41 $ CAD
0.41 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

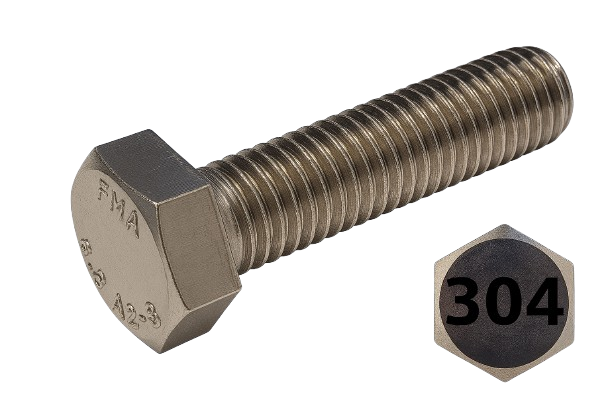

This hexagonal bolt has a length of 5/8" with a threading of 1/4-28 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 304 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BSTF-01006
Nominal Diameter 1/4-28
Length 5/8"
Material and/or Plating 304 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNF | Fine
Direction Right Hand
Size 1/4-28
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 7/16"
Height 5/32"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429
