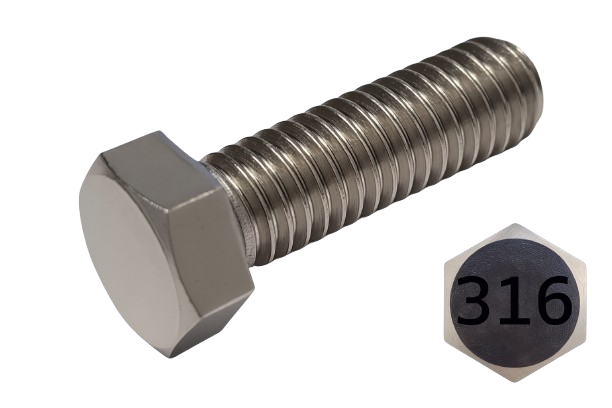

Imperial Hexagonal Bolt Fine And Full Thread 316 Stainless Steel 7/8-14 * 1-3/4"

Imperial Hexagonal Bolt Fine And Full Thread 316 Stainless Steel 7/8-14 * 1-3/4"

16.71 $ CAD
16.71 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download



This hexagonal bolt has a length of 1-3/4" with a threading of 7/8-14 [Fully Threaded]. It is made of 304 stainless steel, provides high resistance to corrosion in dry and wet environments.

The 316 Stainless Steel increases its strength against the pressure and has a tensile strength and hardness of 75,000 psi | Rockwell B79. Furthermore, it features a shear strength of 45,000 psi.

UNF | Fine threads are an industry standard. These bolts are classified as ASME B19.2.1 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BSTF3-09017
Nominal Diameter 7/8-14
Length 1-3/4"
Material and/or Plating 316 Stainless Steel
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNF | Fine
Direction Right Hand
Size 7/8-14
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Standard
Width 1-5/16"
Height 9/16"
Drive Style External Hex

Strength Specifications
Tensile Strength | Hardness 75,000 psi | Rockwell B79
Shear Strength 45,000 psi
Classification ASME B19.2.1 | SAE J429
