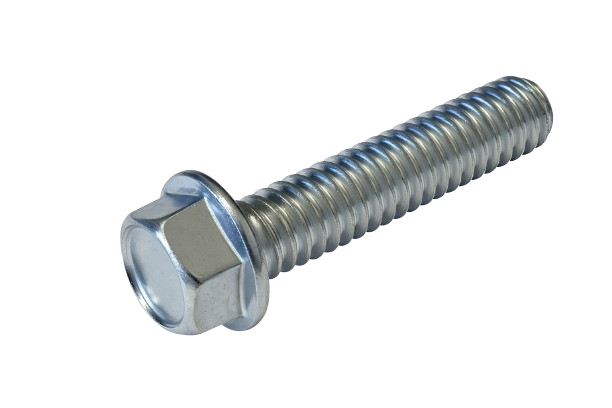

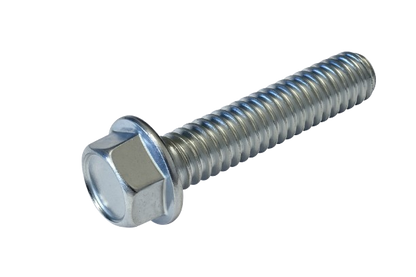

Imperial Flanged Hexagonal Bolt Full Thread 5/16-18 * 3/4" Grade 5

Imperial Flanged Hexagonal Bolt Full Thread 5/16-18 * 3/4" Grade 5

4.33 $ CAD
0.48 $ CAD 4.33 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



This hexagonal bolt has a length of 3/4" with a threading of 5/16-18 [Fully Threaded]. It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

The Grade 5 increases its strength against the pressure and has a tensile strength and hardness of 120,000 psi | Rockwell C25. Furthermore, it features a shear strength of 72,000 psi.

UNC | Coarse threads are an industry standard. These bolts are classified as IFI 111 | SAE J429 and comply with dimensional standards.

View full details

Specifications
Product Number BTE5-02007
Nominal Diameter 5/16-18
Length 3/4"
Material and/or Plating Zinc Plated
System of Measurement Imperial

Thread Specifications
Threading Fully Threaded
Type UNC | Coarse
Direction Right Hand
Size 5/16-18
Shank Length 1-3/4
Fit Class 5g6g

Head Specification
Type Hexagonal
Profile Flanged
Width 1/2"
Height 7/32"
Flange Diameter 11/16
Drive Style External Hex

Strength Specifications
Strength Grade/Class Grade 5
Tensile Strength | Hardness 120,000 psi | Rockwell C25
Shear Strength 72,000 psi
Classification IFI 111 | SAE J429
