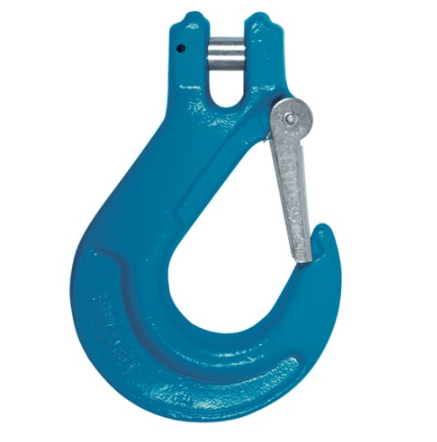

Clevis Hook bleu Painted Alloy Steel 1/2 Grade 100

Clevis Hook bleu Painted Alloy Steel 1/2 Grade 100

Regular price 155.21 $ CAD
Regular price Sale price 155.21 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



A latch ensures rope, chain, and fittings won't separate from the hook when the load slackens. The hook opening accommodates large anchor points and allows chain to move freely through the closed hook. The hooks are colored bleu.

Powder-coated hooks are mildly corrosion resistant. The hooks have a diameter of 1/2.

Note: Capacities are for vertical lifting only. The hooks are grade 100.

View full details

Specifications

Product Number CRO-05100-OL
Application For Lifting
Grade 100
Material Alloy Steel
Finish Powder Coated
For Chain Trade Size 1/2
Capacity 15,000 lbs.

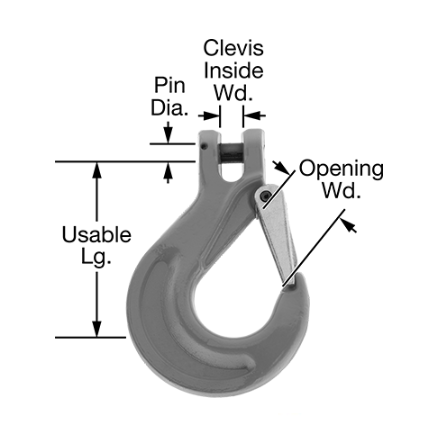

Hook

Opening Width 1 1/2"
Usable Length 5 3/8"
Pin Diameter 5/8"
Clevis Inside Width 9/16"
Color Blue
Fabrication Forged
Latch Type Spring
Maximum Temperature 300° F
Specifications Met ASME B30.10
For Use With Chain
Attachment Type Clevis
RoHS Not Compliant
REACH Not Compliant
