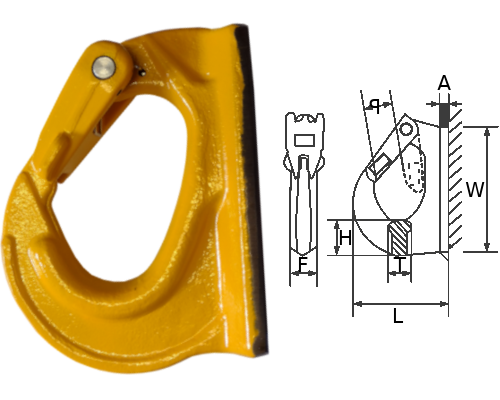

Welding Hook jaune Painted Alloy Steel 8"

Welding Hook jaune Painted Alloy Steel 8"

103.65 $ CAD
103.65 $ CAD
Sale Sold out
Shipping calculated at checkout.
Title
Download

This hook has a weight load limit of 22000 lbs. It is made of jaune painted alloy stee and thus provide medium resistance to corrosion in both dry and wet environments. The hooks have a diameter of 8. The hooks are grade 80.

View full details

Specifications
Product Number CRO-10080-W-51
Material and/or Plating Yellow Painted Alloy Steel
System of Measurement Imperial

Product Specification
Type Welding
Usable For Leverage Yes
Width (F) 2-3/32"
Opening Width (P) 1-31/32"
Outer Width (L) 6-37/64"
Overall Length (W) 7-7/8"
Bottom Thickness (H) 2-11/64"
Bottom Min. Width (T) 1-17/32"

Strength Specifications
Work Load Limit 22000 Lbs
Security Factor 4 : 1
Ultimate Weight Load 88000 Lbs
