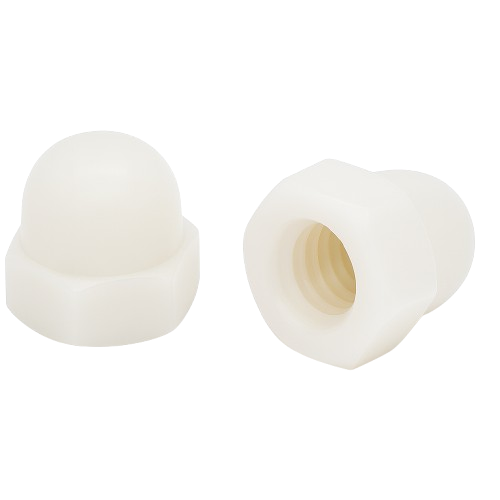

Cap Nut White Nylon 6-32

Cap Nut White Nylon 6-32

0.30 $ CAD
0.30 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


These nylon 6/6 cap nuts are chemical resistant, nonconductive, and lightweight. Also known as acorn nuts, they have a smooth rounded head that covers and protects threads while providing a finished appearance.

View full details

Specifications
Product Number ECY-00600-1
Material Nylon 6/6 Plastic

Thread
Size 6-32
Type UNC
Spacing Coarse
Fit Class 2B
Depth 17/64"
Direction Right Hand
Width 19/64"
Height 11/32"
Temperature Range -40° to 185° F
Drive Style External Hex
Nut Type Cap, Hex
Cap Nut Profile Standard
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
