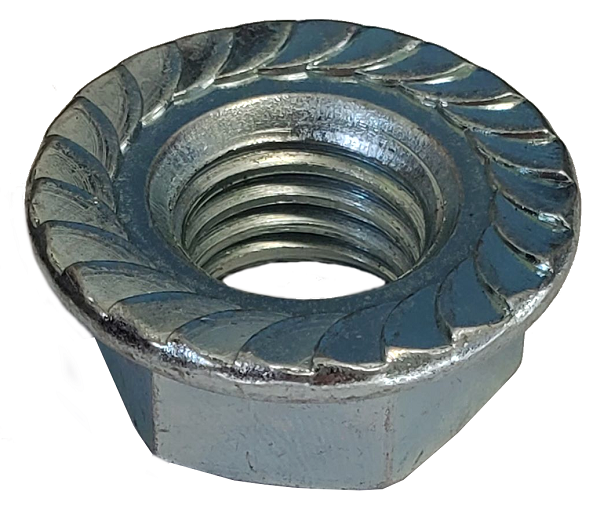

Serrated Flanged Hexagonal Nut Zinc Plated 5/16-18 Grade 5

Serrated Flanged Hexagonal Nut Zinc Plated 5/16-18 Grade 5

Regular price 0.26 $ CAD
Regular price 0.19 $ CAD Sale price 0.26 $ CAD
Sale Sold out
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


These flange locknuts have serrations that grip the material surface instead of the threads for easy installation and mild vibration resistance. The flange distributes pressure where the nut meets the material surface, eliminating the need for a separate washer. Made from Grade 5 steel, they'resuitable for fastening most machinery and equipment. A Zinc-plated steel provides corrosion resistance in wet environments. Height includes the flange.


View full details

Specifications

Product Number EE5-02000
Material Steel
Finish Zinc Plated
Fastener Strength Grade/Class Grade 5
Thread Size 5/16"-18
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2B
Thread Direction Right Hand
Width 1/2"
Height 9/32"

Flange

Diameter 11/16"
Thickness 0.04"
Drive Style External Hex
Nut Type Flange, Locknut
Hex Nut Profile Standard
Locking Type Serrations
System of Measurement Inch
RoHS Compliant
