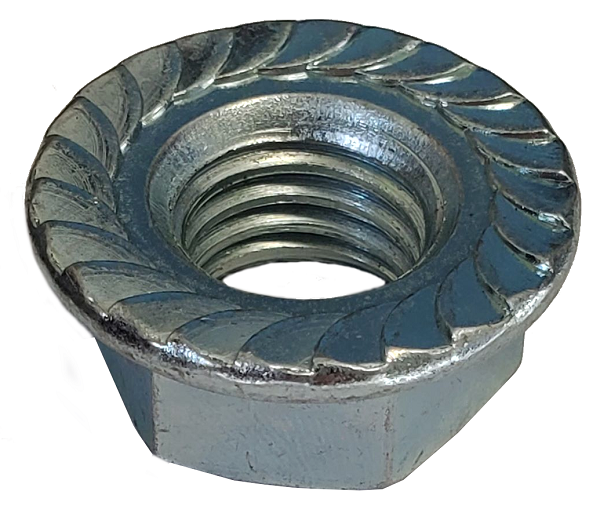

Serrated Flanged Hexagonal Nut Fine Thread Zinc Plated 7/16-20 Grade 5

Serrated Flanged Hexagonal Nut Fine Thread Zinc Plated 7/16-20 Grade 5

0.57 $ CAD
0.57 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

These flange locknuts have serrations that grip the material surface instead of the threads for easy installation and mild vibration resistance. The flange distributes pressure where the nut meets the material surface, eliminating the need for a separate washer. Made from Grade 5 steel, they're suitable for fastening most machinery and equipment. A Zinc-plated steel provides corrosion resistance in wet environments. Height includes the flange. The nuts have a thread of 7/16-20.

View full details

Specifications
Product Number EFE5-04000
Material Steel
Finish Zinc Plated
Fastener Strength Grade/Class Grade 5
Thread Size 7/16 "-20
Thread Type UNC
Thread Spacing Fin
Thread Fit Class 2B
Thread Direction Right Hand
Width 11/16 "
Height 25/64 "

Flange
Diameter 15/16 "
Thickness 0.04"
Drive Style External Hex
Nut Type Flange, Locknut
Hex Nut Profile Standard
Locking Type Serrations
System of Measurement Inch
RoHS Compliant
