Specifications
| Product Number | EGR-02005 |
| For Use In | Hardwood, Softwood |

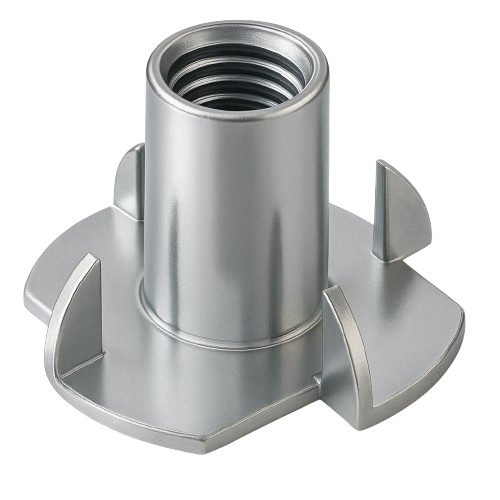

| Threaded Insert Type | Hammer In |
| Material | Zinc-Plated Steel |
| System of Measurement | Inch |
| Thread Direction | Right Hand |
| Thread Size | 5/16"-18 |
| Thread Type | UNC |
| Thread Spacing | Coarse |
| Thread Fit | Class 2B |
| Installed Length | 0.43" |
Barrel |
|
| Diameter | 0.37" |
| For Min. Material Thickness | 3/8" |
Flange |
|
| Diameter | 7/8" |
| Thickness | 0.055" |
| Number of Prongs | 4 |
| Prong Length | 9/32" |
| Drill Bit Size | 3/8" |
| For Maximum Hole Diameter | 3/8" |
| End Type | Open |
| Tensile Strength | 40,000 psi |
| REACH | REACH (EC 1907/2006) (07/16/2019, 201 SVHC) Compliant |
| RoHS | RoHS 3 (2015/863/EU) compliant |
