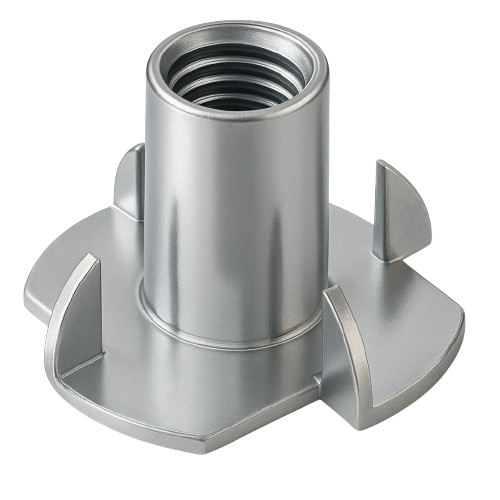

Specifications
| Product Number | EGR-03000 |
| For Use In | Hardwood, Softwood |
| Threaded Insert Type | Hammer In |
| Material | Zinc-Plated Steel |
| System of Measurement | Inch |
| Thread Direction | Right Hand |
| Thread Size | 3/8"-16 |
| Thread Type | UNC |
| Thread Spacing | Coarse |
| Thread Fit | Class 2B |
| Installed Length | 0.501" |
Barrel |
|
| Diameter | 0.44" |
| For Min. Material Thickness | 7/16" |
Flange |
|
| Diameter | 1" |
| Thickness | 0.063" |
| Number of Prongs | 4 |
| Prong Length | 5/16" |
| Drill Bit Size | 29/64" |
| For Maximum Hole Diameter | 29/64" |
| End Type | Open |
| Tensile Strength | 40,000 psi |
| REACH | REACH (EC 1907/2006) (07/16/2019, 201 SVHC) Compliant |
| RoHS | RoHS 3 (2015/863/EU) compliant |
