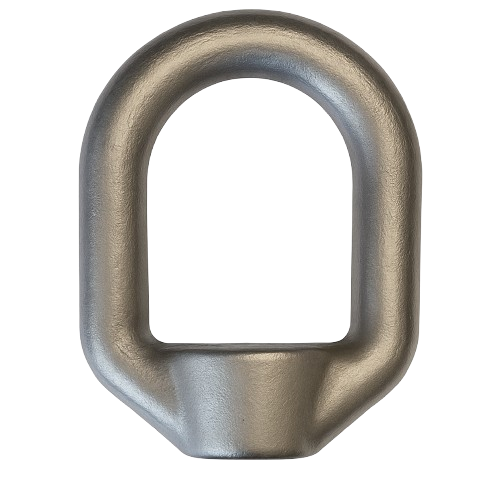

Eye nut 316 Stainless Steel 5/8-11 * 1-1/2

Eye nut 316 Stainless Steel 5/8-11 * 1-1/2

Regular price 29.81 $ CAD
Regular price Sale price 29.81 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download





Create your own lifting eye by adding an eye nut to a stud or bolt.

316 stainless steel are the most corrosion resistant eye nuts.

Note: Capacity applies to the eye nut only. The stud or bolt you use will affect the overall capacity. Eye nuts are for vertical lifting only. Eye nuts have a thread of 5/8-11 and a length of 1-1/2.

Warning: Never use to lift people or items over people. Eye nuts have an admissible load of 3440 lbs.

View full details

Specifications

Product Number EOS3-07000
Application For Lifting
Body Style Eye Nut
Thread Size 5/8"-11
Overall Length 3 1/8"
Eye Diameter 1 1/2"
Vertical Capacity 3,600 lbs.
Eye Style Closed
Eye Shape Oval
Material 316 Stainless Steel
Threading Fully Threaded
Movement Rigid
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
