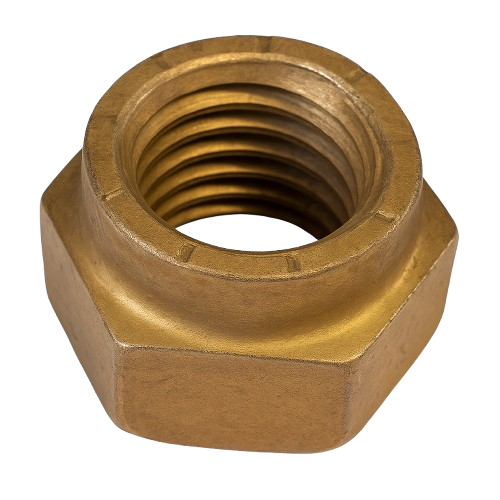

Conical Hexagonal Nut Cadium Plated 9/16-12 Grade 9

Conical Hexagonal Nut Cadium Plated 9/16-12 Grade 9

Regular price 4.77 $ CAD
Regular price Sale price 4.77 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



These locknuts have an irregularly shaped thread at the top of the nut that grips the bolt for a stronger hold than nylon-insert locknuts. They thread on from the bottom of the nut, allowing more threads to engage the bolt before tightening for easier installation than center-lock distorted thread locknuts. The strength of the bolt should match the strength of the nut to prevent damaging threads. They'renot reusable. About 20%stronger than high-strength steel locknuts, they'reoften used in heavy machinery, such as earth-moving equipment. A Cadmium-Plated Steel provides corrosion resistance in wet environments and adds lubricity so they thread on smoothly. The nuts have a thread of 9/16-12.




View full details

Specifications

Product Number EQ9-06000
Material Steel
Finish Cadium Plated
Fastener Strength Grade/Class Grade 9
Thread Size 9/16"-12
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2B
Thread Direction Right Hand
Width 7/8"
Height 31/64"
Drive Style External Hex
Nut Type Locknut
Hex Nut Profile Standard
Locking Type Distorted Thread
Distorted Thread Type Top Lock
System of Measurement Inch
RoHS Not Compliant
