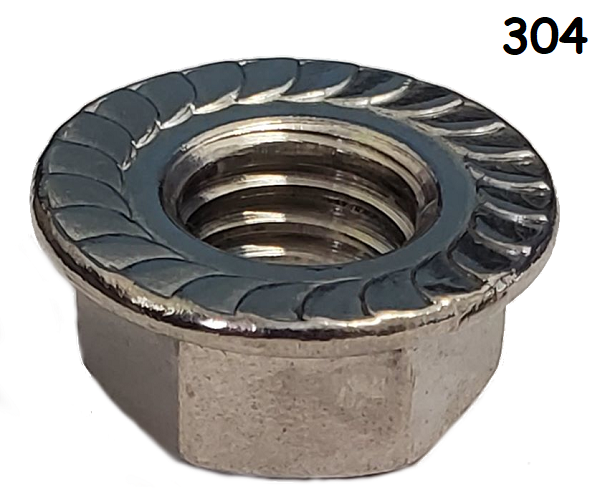

Serrated Flanged Hexagonal Nut Fine Thread 304 Stainless Steel 1/2-20

Serrated Flanged Hexagonal Nut Fine Thread 304 Stainless Steel 1/2-20

4.00 $ CAD
4.00 $ CAD
Sale Sold out
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Made from  18-8  stainless  steel,  these flange locknuts have good chemical resistance and may be mildly  magnetic.  Serrations grip the material surface instead of the threads for easy installation and mild vibration  resistance.  The flange distributes pressure where the nut meets the material  surface,  eliminating the need for a separate  washer.  Height includes the  flange.

View full details

Specifications
Product Number ESFE-05000
Material 304 Stainless Steel
Thread Size 1/2"-20
Thread Type UNF
Thread Spacing Fine
Thread Fit Class 2B
Thread Direction Right Hand
Width 3/4"
Height 29/64"

Flange
Diameter 1   1/32"
Thickness 0.05"
Drive Style External Hex
Nut Type Flange, Locknut, Hex
Hex Nut Profile Standard
Locking Type Serrations
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
