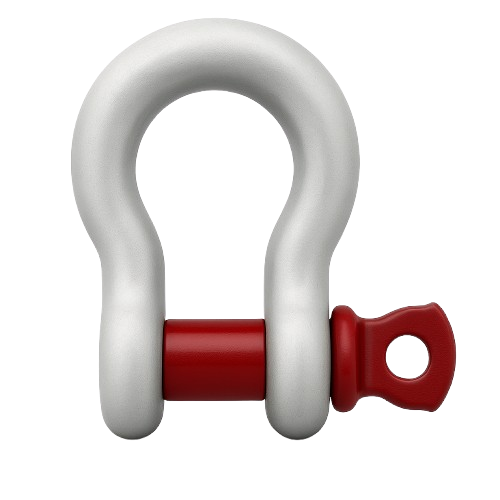

Screw-Pin Shackles Hot Dip Galvanized 2

Screw-Pin Shackles Hot Dip Galvanized 2

Regular price 323.90 $ CAD
Regular price Sale price 323.90 $ CAD
Sale Sold out
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Screw the pin into position by hand for quick installation and removal. They're for use in low-vibration applications where the shackle remains stationary. Also known as anchor and bow shackles, the wide body provides room to attach multiple connectors.

Galvanized steel shackles have a thick coating for corrosion resistance.

Note: Capacities listed are for vertical lifting only. As the lift angle changes from vertical, the amount of weight the shackle can lift is significantly reduced.

View full details

Specifications

Product Number MAC-20000
Material Galvanized Steel
Thickness 2"
Opening Width 3 9/32"
Pin Diameter 2 1/4"
Inside Length 7 15/32"
Inside Width 5 1/2"
Capacity 70,000 lbs.
Fabrication Forged
Pin Type Screw
Specifications Met ASME B30.26, Fed. Spec. RR-C-271F
Fitting Type Shackle
Application For Lifting
Attachment Type Clevis
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
