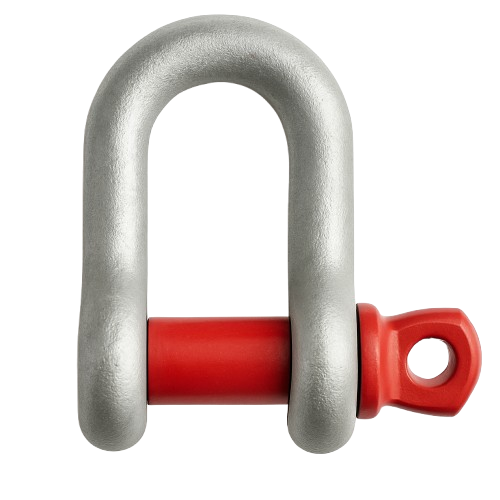

D-Shackle Hot Dip Galvanized 3/8-16

D-Shackle Hot Dip Galvanized 3/8-16

Regular price 7.33 $ CAD
Regular price Sale price 7.33 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Screw the pin into position by hand for quick installation and removal. They're for use in low-vibration applications where the shackle remains stationary. A narrow inner opening restricts the movement of wire rope and chain. They're also known as D-shackles.

Galvanized steel shackles have a thick coating for corrosion resistance.

Note: Capacities listed are for vertical lifting only. As the lift angle changes from vertical, the amount of weight the shackle can lift is significantly reduced.

View full details

Specifications

Product Number MDC-03000
Material Galvanized Steel
Pin Material Alloy Steel
Thickness 3/8"
Opening Width 11/16"
Pin Diameter 15/32"
Inside Length 1 1/4"
Inside Width 11/16"
Capacity 2,000 lbs.
Fabrication Forged
Pin Type Screw
Specifications Met ASME B30.26, Fed. Spec. RR-C-271F
Fitting Type Shackle
Application For Lifting
Attachment Type Clevis
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
