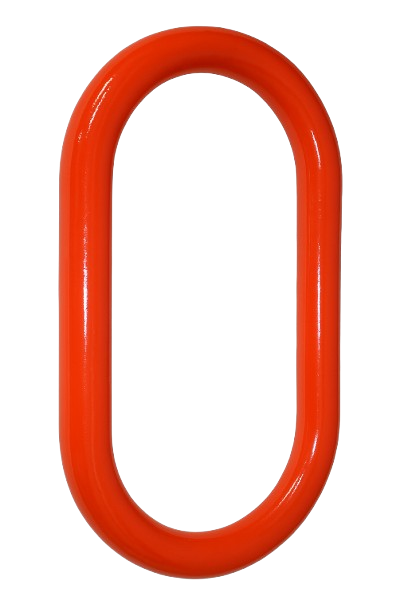

Oblong Link Orange Painted Alloy Steel 2 * 14'' Grade 80

Oblong Link Orange Painted Alloy Steel 2 * 14'' Grade 80

438.93 $ CAD
438.93 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Also known as master and sling links, a large inner diameter provides room to attach multiple connectors or legs on a sling.

Forged links offer greater strength than welded links.

Note: Capacities are for vertical lifting only. As the angle changes from vertical, the amount of weight the link can lift is significantly reduced.

View full details

Specifications
Product Number MTO80-20140
Grade 80
Material Orange Painted Alloy Steel

For Chain Trade Size
One Chain 1 1/2
Two Chains 1 1/4
Thickness 2"
Inside Width 4 3/8"
Capacity 102,600 lbs.
Fabrication Welded
Specifications Met ASME B30.26
Fitting Type Link/Ring
Application For Lifting
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
