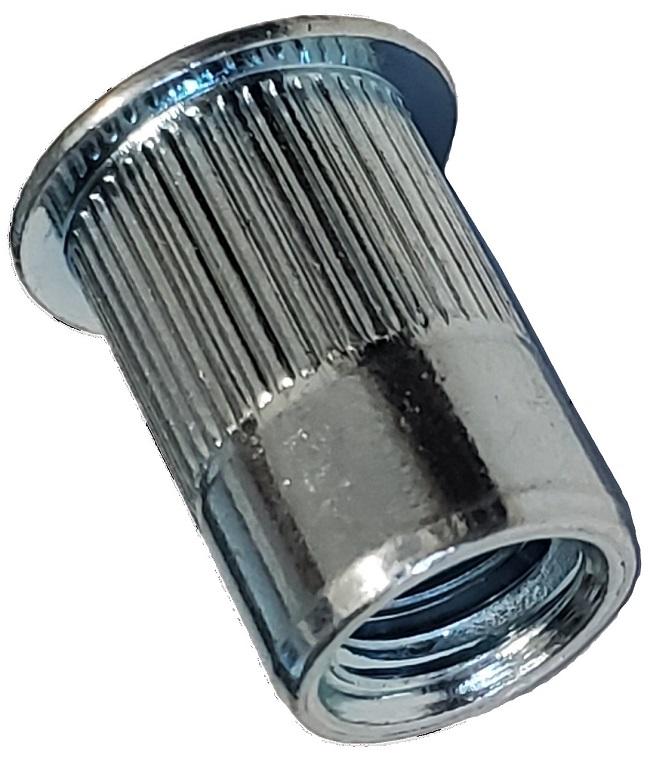

Twist Rivet Nut Zinc Plated 5/16-18 * 3/8"

Twist Rivet Nut Zinc Plated 5/16-18 * 3/8"

1.36 $ CAD
1.36 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

About twice as strong as aluminum rivet nuts, these steel rivet nuts are zinc yellow-chromate plated for corrosion resistance. A ribbed body holds the nut in place so it won't turn when tightening a screw. Also known as blind inserts, they can be installed when you have access to only one side of the material. Install in a drilled hole using a

rivet nut tool

. The tool collapses the nut, creating a backside flange that holds the nut to the material. Length is measured from under the flange. Installed length is the maximum length of the barrel when installed.
View full details

Specifications
Product Number PFM-02003
Material Zinc Chromate-Plated Steel
Thread Size 5/16"-18
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2B
Thread Direction Right Hand
Drill Bit Size 17/32"
Drill Bit Decimal Size Equivalent 0.5312"
For Material Thickness 0.027" to 0.150"

Body
Type Ribbed
Diameter 0.530"

Length
Length 3/8"
Installed Length 0.470"

Flange
Diameter 0.685"
Thickness 0.035"
Nut Type Rivet
End Type Open
For Use In Metal
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (06/25/2020, 209 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
