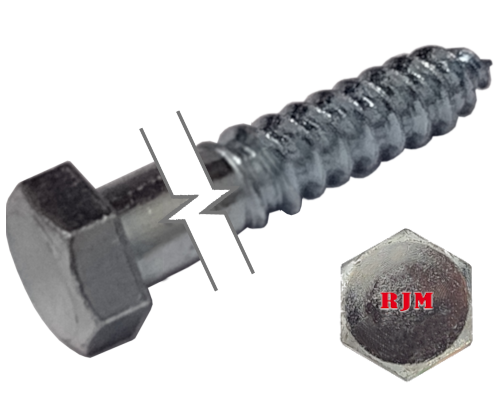

Imperial Hexagonal Lag Screw Partial Thread Zinc Plated 5/16" * 4"

Imperial Hexagonal Lag Screw Partial Thread Zinc Plated 5/16" * 4"

Regular price 1.19 $ CAD
Regular price Sale price 1.19 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This lag screw has a length of 4". It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

These lag screws are classified as ASME B18.2.1 and comply with dimensional standards.

View full details

Specifications

Product Number TF-02040
Nominal Diameter 5/16"
For Use In Wood
Material and/or Plating Zinc Plated

Head Specification

Type Hexagonal
Profile Standard
Width 1/2"
Height 7/32"
Drive Style External Hex

Thread Specification

Threading Partially Threaded
Direction Right Hand
Min. Length 2-1/2"
Average Thread Per Inch 9

Other Specification

Classification ASME B18.2.1
