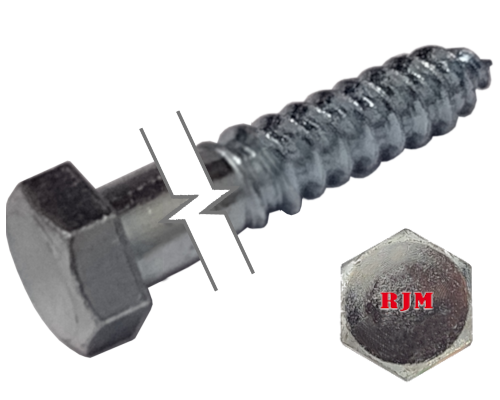

Imperial Hexagonal Lag Screw Partial Thread Zinc Plated 5/8" * 12"

Imperial Hexagonal Lag Screw Partial Thread Zinc Plated 5/8" * 12"

17.32 $ CAD
17.32 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

This lag screw has a length of 12". It is made of zinc plated and thus provide medium resistance to corrosion in both dry and wet environments.

These lag screws are classified as ASME B18.2.1 and comply with dimensional standards.

View full details

Specifications
Product Number TF-07120
Nominal Diameter 5/8"
For Use In Wood
Material and/or Plating Zinc Plated

Head Specification
Type Hexagonal
Profile Standard
Width 15/16"
Height 27/64"
Drive Style External Hex

Thread Specification
Threading Partially Threaded
Direction Right Hand
Min. Length 5"
Average Thread Per Inch 5

Other Specification
Classification ASME B18.2.1
