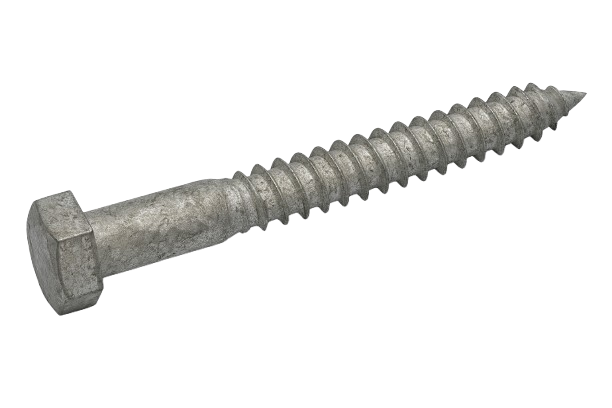

Hexagonal Lag Screw Hot Dip Galvanized 3/4 * 14"

Hexagonal Lag Screw Hot Dip Galvanized 3/4 * 14"

35.03 $ CAD
35.03 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


These steel screws have corrosion-resistant finishes. Also known as lag bolts, they have a hex head for a secure grip with a wrench. They press threads into material for a tight, secure hold. To prevent splitting, drill a pilot hole slightly smaller than the screw. Length is measured from under the head.

Hot-dipped galvanized steel screws have a thick coating for better corrosion resistance than zinc-plated steel screws. They're a good choice for ACQ-treated (arsenic-free) lumber.

View full details

Specifications
Product Number TFG-08140
Material Hot-Dipped Galvanized Steel
Screw Size 3/4"
Screw Size Decimal Equivalent 0.750"
Length 14"

Head
Width 1.125"
Height 0.5"
Drive Style External Hex
Approximate Threads per Inch 4.5
Thread Direction Right Hand
Threading Partially Threaded
Minimum Thread Length 2.667"
Tapping Method Thread Forming
Head Type Hex
Hex Head Profile Standard
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Wood
Specifications Met ASME B18.2.1, ASTM A307, SAE J429
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
