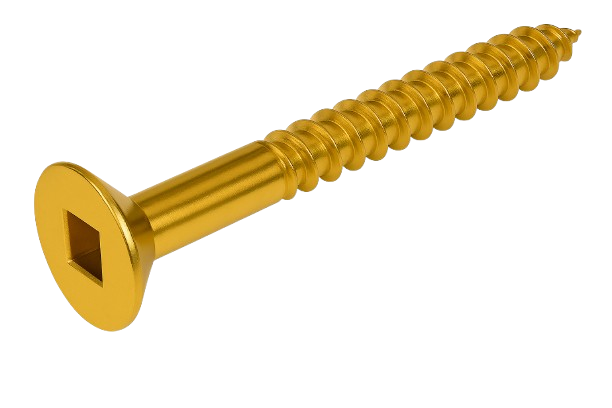

Flat Head Wood Screw Brass #5 * 3/4" [Square Drive]

Flat Head Wood Screw Brass #5 * 3/4" [Square Drive]

0.30 $ CAD
0.14 $ CAD 0.30 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Brass screws are corrosion resistant in wet environments, electrically conductive, and nonmagnetic. All are beveled under the head for use in countersunk holes. They press threads into material for a tight, secure hold. To prevent splitting, drill a pilot hole slightly smaller than the screw. Length is measured from the top of the head. The screw has a length of 3/4 and a diameter of #5.




View full details

Specifications
Product Number VBFB-05007-C
Material Brass
Screw Size No. 5
Screw Size Decimal Equivalent 0.125"
Length 3/4"

Head
Diameter 0.252"
Height 0.075"
Drive Size No. 2
Drive Style Square
Softwood Drill Bit Size 1/16"
Softwood Drill Bit Size Decimal Equivalent 0.063"
Hardwood Drill Bit Size 5/64"
Hardwood Drill Bit Size Decimal Equivalent 0.078"
Approximate Threads per Inch 20
Thread Direction Right Hand
Threading Partially Threaded
Min. Thread Length 0.417"
Tapping Method Thread Forming
Head Type Flat
Flat Head Profile Standard
Countersink Angle 82°
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Wood
RoHS 3 (2015/863/EU) Compliant
