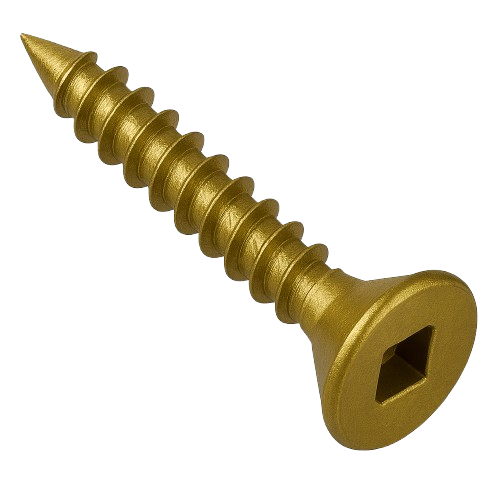

Flat Head Concrete Screw Yellow Zinc 1/4 * 3-1/4" [Square Drive]

Flat Head Concrete Screw Yellow Zinc 1/4 * 3-1/4" [Square Drive]

0.52 $ CAD
0.52 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


These ultra-corrosion-resistant coated steel screws stand up to wet environments. These screws are beveled under the head for a flush finish in countersunk holes. Drive into a hole with a hammer drill or socket wrench, or use a specialized tool set (sold separately). Pull-out strength and shear strength values are 25% of the ultimate values.

Ultra-corrosion-resistant coated anchors are also known as Tapcons.

View full details

Specifications
Product Number VCF-01032
Material Ultra-Corrosion-Resistant Coated Steel
Diameter 1/4"
Length 3-1/4"
Screw Size 1/4"
Screw Size Decimal Equivalent 0.25"
Drill Bit Size 3/16"
Drill Bit Decimal Size Equivalent 0.1875"
Thread Length 1 3/64"
Min. Install. Depth 1"

Head
Diameter 1/2"
Height 0.21"

Strength, lbs.
Pull-Out 190
Shear 225
Tested In 3,000 psi Concrete
Drive Style Square
Head Type Flat
Flat Head Profile Standard
Countersink Angle 82°
Thread Direction Right Hand
Tip Type Diamond Point
For Use In Concrete, Brick, Block
Removable Removable
Anchor Type Tapping Screw
System of Measurement Inch
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
