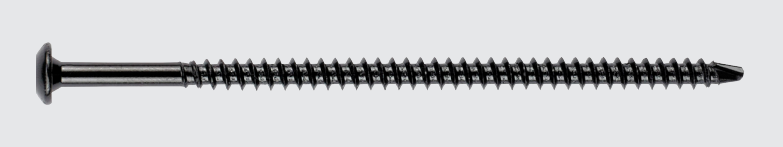

G-Fast™ Self-Drill Screw Phillips #3 Black Epoxy Coating #14 * 2 [FM APPROVED]

G-Fast™ Self-Drill Screw Phillips #3 Black Epoxy Coating #14 * 2 [FM APPROVED]

0.50 $ CAD
0.50 $ CAD
Sale Sold out
Shipping calculated at checkout.
Package of
Download

G-Fast™ Self-Drill Screw Phillips #3 Black Epoxy Coating #14 * 2 [FM APPROVED] offers superior strength and durability for a wide variety of applications. The black epoxy coating is FM approved and helps resist corrosion, extending the life of the screw. The Phillips drive and Deckfast technology provide a secure installation, making it ideal for decking, structural construction, and similar projects.


Installation and Application Considerations

Tools: 2000–2500 rpm screw guns with hardened #3 Phillips bit. For structual concrete, 3/16" carbide bit and 1500 rpm max screw guns, or hammer drills in the hammer mode. Structural concrete to be predrilled with standard 3/16" carbide bit to minimum 1/2" deeper than fastener penetration. The standard carton package includes one #3 Phillips bit.

Material Minimum Penetration :

• Steel thickness from 22 ga (0.030 in.) through 18 ga (0.048 in.) : Min penetration : 3/4"

• Wood 2x (1-1/2" thick) : Min penetration: 1"

• Plywood and OSB : Min through penetration: 3/4"

• Structural Concrete: Min penetration : 1"

View full details

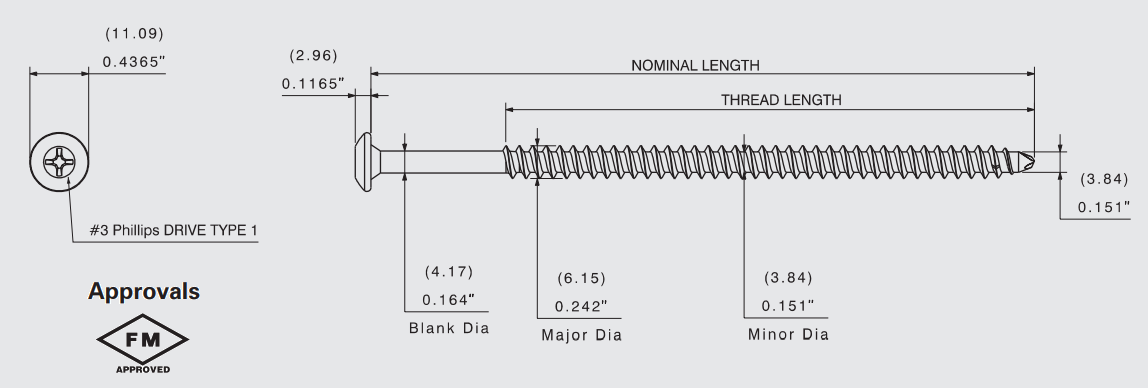

Specifications
Product Number VDF-14020-PH3
Nominal Diameter #14 [0.242'']
Screw Length 2"
Material and/or Plating Black Epoxy Coating
System of Measurement Imperial

Recommanded Product
Plates Web

Thread Specifications
Threading Fully Threaded
Type Coarse Thread Wood Screw
Direction Right Hand
Size 0.255''
Thread Length 2.00''
Shank Length N/A
Fit Class 5g6g

Round Head Specification
Type Large Round Head
Profile Standard
Width 7/16" [0.4365'']
Height 1/8" [0.1165'']
Drive Style Philips Drive #3

Material Strength Specifications
Tensile Strength 3300 Lbf | 14679 N
Shear Strength 2100 Lbf | 9341 N
Torsional 110 Lbf*in | 12.43 N*m

Pull out Strength Steel
18 Ga [1.2mm] 900 Lbf | 4003 N
20 Ga [0.9mm] 635 Lbf | 2825 N
22 Ga [0.8mm] 457 Lbf | 2033 N

Pull out Strength Wood
Lumber 1 inch Penetration 605 Lbf | 2691 N
FR Plywood Through Penetration 590 Lbf | 2624 N

Pull out Strength Concrete
4000 PSI [1 inch Penetration] 850 Lbf | 3781 N
