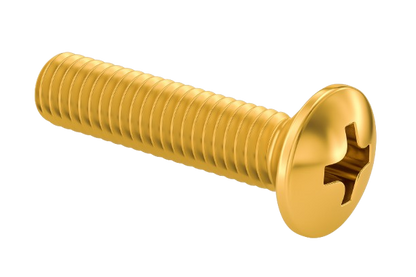

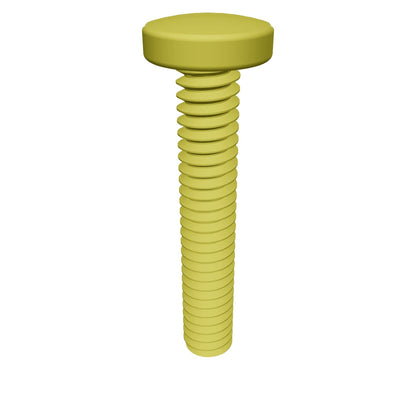

Pan Head Machine Screw Full Thread Brass 8-32 * 1/2" [Philips Drive]

Pan Head Machine Screw Full Thread Brass 8-32 * 1/2" [Philips Drive]

0.35 $ CAD
0.51 $ CAD 0.35 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Brass pan head screws are corrosion resistant in wet environments, nonmagnetic, and electrically conductive. Length is measured from under the head.


View full details

Specifications
Product Number VMBP-00705
Thread Size 8-32
Length 1/2"
Threading Fully Threaded
Head Diameter 0.322"
Head Height 0.115"
Drive Style Phillips
Drive Size No. 2
Material Brass
Hardness Rockwell B40
Tensile Strength 50,000 psi
Screw Size Decimal Equivalent 0.164"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2A
Thread Direction Right Hand
Head Type Rounded
Rounded Head Style Pan
Rounded Head Profile Standard
System of Measurement Inch
Specifications Met ASME B18.6.3
RoHS 3 (2015/863/EU) Compliant
