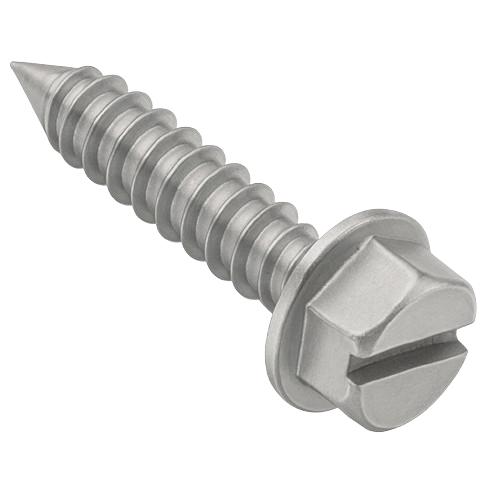

Flanged Hexagonal Head Metal Screw Full Thread Zinc #2 * 1-1/4" [Slotted Drive]

Flanged Hexagonal Head Metal Screw Full Thread Zinc #2 * 1-1/4" [Slotted Drive]

0.76 $ CAD
0.76 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


These steel screws are zinc plated to resist corrosion in wet environments. All have a hex head for a secure grip with a wrench and a flange to reduce the risk of crushing thin metal. They penetrate 0.025" and thinner sheet metal. Length is measured from under the flange. Head height includes the flange.

View full details

Specifications
Product Number VMEH-02012-S
Material Zinc-Plated Steel
Screw Size 5/16"
Screw Size Decimal Equivalent 0.313"
Length 1-1/4"

Head
Width 0.5"
Height 0.285"
Flange Diameter 0.676"
Drive Style External Hex/Slotted
Drill Bit Size 6.9 mm
Drill Bit Size Decimal Equivalent 0.2717"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 10
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Hex
Hex Head Profile Standard
Tip Type Pointed
Shank Cross Section Round
Screw Features Flanged
System of Measurement Inch
For Use In Sheet Metal
RoHS RoHS 3 (2015/863/EU) compliant
