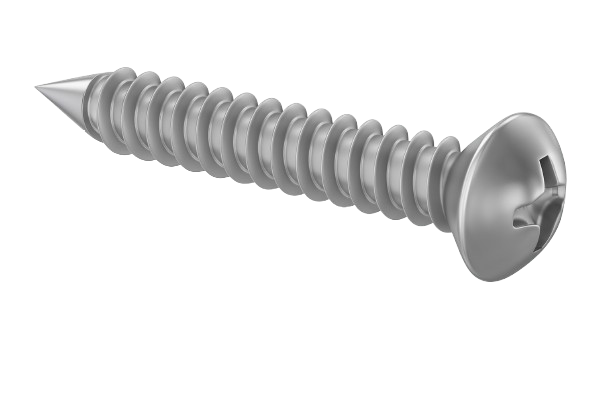

Oval Head Metal Screw Full Thread Zinc #10 * 1" [Square Drive]

Oval Head Metal Screw Full Thread Zinc #10 * 1" [Square Drive]

0.15 $ CAD
0.15 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

These steel screws are zinc plated to resist corrosion in wet environments. They penetrate 0.025" and thinner sheet metal. Length is measured from under the head.




View full details

Specifications
Product Number VMER-10010-Q
Material Zinc-Plated Steel
Screw Size No. 10
Screw Size Decimal Equivalent 0.190"
Length 1"

Head
Diameter 0.373"
Height 0.137"
Drive Size No. 2
Drive Style Quadrex
Drill Bit Size No. 21
Drill Bit Size Decimal Equivalent 0.159"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 12
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Rounded
Rounded Head Profile Standard
Rounded Head Style Pan
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS RoHS 3 (2015/863/EU) compliant
