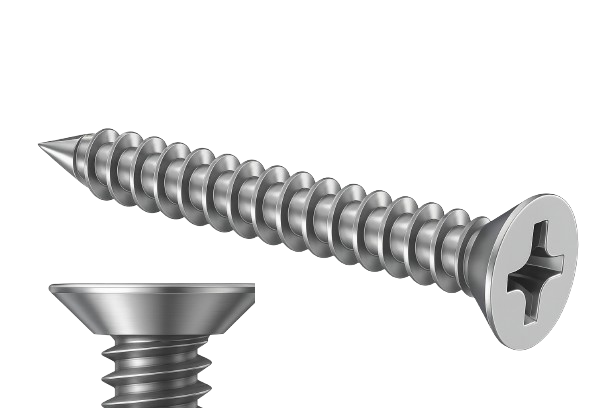

Undercut Flat Head Metal Screw Full Thread Stainless Steel #6 * 3/8" [Philips Drive]

Undercut Flat Head Metal Screw Full Thread Stainless Steel #6 * 3/8" [Philips Drive]

0.18 $ CAD
0.16 $ CAD 0.18 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


304 stainless steel screws have good chemical resistance and may be mildly magnetic. They'rebeveled under the head for use in countersunk holes. Screws penetrate 0.025" and thinner sheet metal. Length is measured from the top of the head.

Undercut screws allow for more threading.


View full details

Specifications
Product Number VMESFU-06003
Material 304 Stainless Steel
Screw Size No. 6
Screw Size Decimal Equivalent 0.138"
Length 3/8"
Flat Head Profile Undercut

Head
Diameter 0.262"
Height 0.058"
Drive Size No. 2
Drive Style Phillips
Drill Bit Size No. 32
Drill Bit Size Decimal Equivalent 0.116"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 18
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Flat
Countersink Angle 82°
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS 3 (2015/863/EU) Compliant
