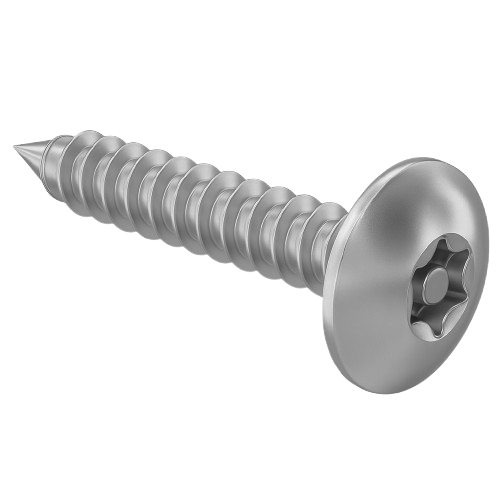

Truss Head Metal Screw Full Thread Zinc #10 * 3/4" [Torx Pin-in Drive]

Truss Head Metal Screw Full Thread Zinc #10 * 3/4" [Torx Pin-in Drive]

2.00 $ CAD
2.00 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Price may change with quantity see chart under PROMOTIONS


Zinc-plated steel screws have good chemical resistance and may be mildly magnetic. They have a wider head than standard rounded head screws to distribute holding pressure and reduce the risk of crushing thin metal. They penetrate 0.025" and thinner sheet metal. Length is measured from under the head.

View full details

Specifications
Product Number VMET-10007-T
Material Steel
Finish Zinc Plated
Screw Size No. 10
Screw Size Decimal Equivalent 0.190"
Length 3/4"

Head
Diameter 0.448"
Height 0.118"
Drive Size No. 2
Drive Style Phillips
Drill Bit Size No. 21
Drill Bit Size Decimal Equivalent 0.159"
Maximum Drilling Thickness 0.025"
Approximate Threads per Inch 12
Thread Direction Right Hand
Threading Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type A/AB
Head Type Rounded
Rounded Head Profile Wide
Rounded Head Style Truss
Tip Type Pointed
Shank Cross Section Round
System of Measurement Inch
For Use In Sheet Metal
RoHS 3 (2015/863/EU) Compliant
