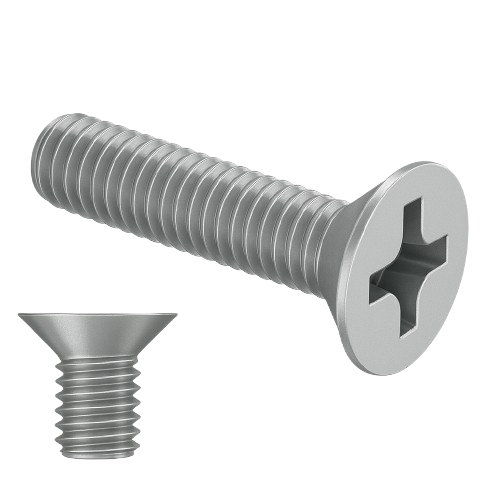

Undercut Flat Head Machine Screw Full Thread Stainless Steel 3/8-16 * 1/2" [Philips Drive]

Undercut Flat Head Machine Screw Full Thread Stainless Steel 3/8-16 * 1/2" [Philips Drive]

0.90 $ CAD
2.47 $ CAD 0.90 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

These screws have good chemical resistance and may be mildly magnetic. They’re angled under the head to sit flush within countersunk holes. Length is measured from the top of the head.

Screws with an undercut profile have a shallow head for use in thin materials.

304 stainless steel screws provide added protection against oxidation and corrosion. The screw has a thread of 3/8-16 and a length of 1/2.

View full details

Specifications
Product Number VMSFU-03005
Thread Size 3/8"-16
Length 1/2"
Threading Fully Threaded
Flat Head Profile Undercut
Head Diameter 0.717"
Head Height 0.161"
Countersink Angle 82°
Drive Style Phillips
Drive Size No. 4
Material 304 Stainless Steel
Hardness Rockwell B80
Tensile Strength 80,000 psi
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2A
Thread Direction Right Hand
Head Type Flat
System of Measurement Inch
Specifications Met ASME B18.6.3
RoHS 3 (2015/863/EU) Compliant
