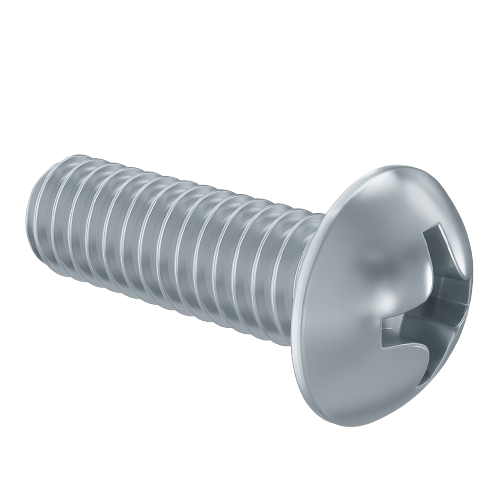

Round Head Machine Screw Full Thread Stainless Steel 1/4-20 * 1" [Philips Drive]

Round Head Machine Screw Full Thread Stainless Steel 1/4-20 * 1" [Philips Drive]

0.46 $ CAD
0.43 $ CAD 0.46 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

Made from 304 stainless steel, these round head screws have good chemical resistance and may be mildly magnetic. They are passivated for added protection against oxidation and corrosion. The tall, domed head provides a finished appearance. Length is measured from under the head.




View full details

Specifications
Product Number VMSR-01010
Thread Size 1/4"-20
Length 1"
Threading Fully Threaded
Head Diameter 0.472"
Head Height 0.175"
Drive Style Phillips
Drive Size No. 3
Material 304 Stainless Steel
Hardness Rockwell B100
Tensile Strength 100,000 psi
Screw Size Decimal Equivalent 0.250"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2A
Thread Direction Right Hand
Head Type Rounded
Rounded Head Style Round
Rounded Head Profile Standard
System of Measurement Inch
Specifications Met ASME B18.6.3
RoHS 3 (2015/863/EU) Compliant
