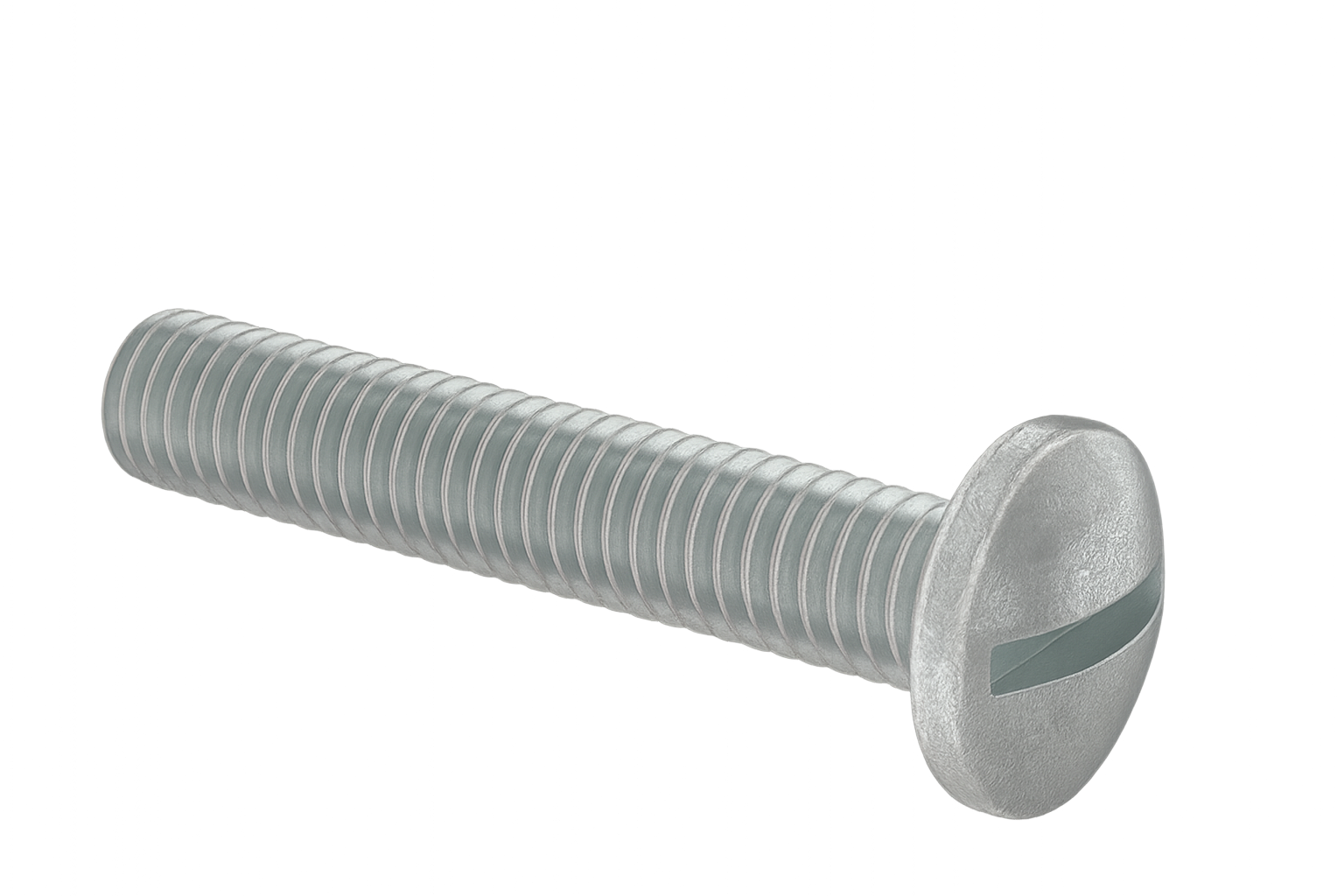

Truss Head Machine Screw Full Thread Zinc 8-32 * 5/8" [Slotted Square Drive]

Truss Head Machine Screw Full Thread Zinc 8-32 * 5/8" [Slotted Square Drive]

0.15 $ CAD
0.15 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download

An extra-wide truss head reduces the risk of crushing thin materials and has better holding pressure than binding head screws.These screws have a zinc plating that resists corrosion in wet environments.Length is measured from under thehead.




View full details

Specifications
Product Number VMT-00706-SS
Thread Size 8-32
Length 5/8"
Threading Fully Threaded
Head Diameter 0.384"
Head Height 0.102"
Drive Style Slotted
Material Zinc-Plated Steel
Hardness Rockwell B69
Tensile Strength 60,000 psi
Screw Size Decimal Equivalent 0.164"
Thread Type UNC
Thread Spacing Coarse
Thread Fit Class 2A
Thread Direction Right Hand
Head Type Rounded
Rounded Head Style Truss
Rounded Head Profile Wide
System of Measurement Inch
Specifications Met ASME B18.6.3
RoHS RoHS 3 (2015/863/EU) compliant
