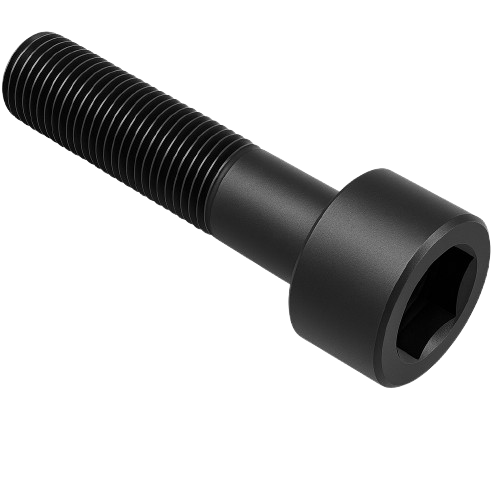

Socket Head Cap Screw Black Oxyde Alloy Steel 3/8-24 * 4-3/4" Grade 8 [Cup Point] [Allen Drive]

Socket Head Cap Screw Black Oxyde Alloy Steel 3/8-24 * 4-3/4" Grade 8 [Cup Point] [Allen Drive]

7.60 $ CAD
7.60 $ CAD
Sale Sold out
Shipping calculated at checkout.
Quantity
Download



With a tensile strength of170, 000psi, these alloy steel screws are stronger than Grade 8 steelscrews. Length is measured from under the head.

Black-oxide steel screws are mildly corrosion resistant in dry environments.

Coarse threads are the industrystandard:choose these screws if you don’t know the pitch or threads per inch.

Screws that meet ASTMA574, ASTMA574M, and ISO898-1comply with specifications and testing requirements for materialquality.

View full details

Specifications
Product Number VPC-03047
Head Type Socket
Socket Head Profile Standard
Drive Style Hex
System of Measurement Inch
Thread Direction Right Hand
Thread Size 3/8"-16
Screw Size Decimal Equivalent 0.375"
Thread Type UNC
Thread Fit Class 3A
Length 4-3/4"
Threading Partially Threaded
Min. Thread Length 1-1/4"
Thread Spacing Coarse

Head
Diameter 9/16"
Height 3/8"
Drive Size 5/16"
Material Black-Oxide Alloy Steel
Fastener Strength Grade/Class Grade 8
Tensile Strength 170,000 psi
Hardness Rockwell C37
Specifications Met ASTM A574
RoHS 3 (2015/863/EU) Compliant
